Petroleum Equipment
We pursue the creation of customer value and strive for technological innovation. Our independently developed series of high-end intelligent petroleum equipment are patented both in China and overseas. These products have international advanced level and are highly appraised by users around the world.

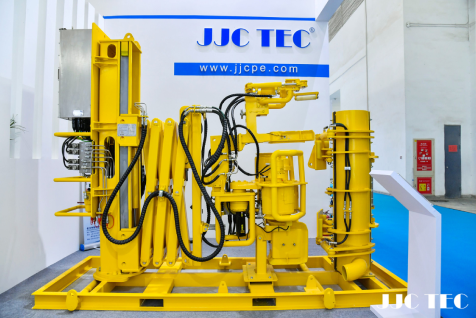

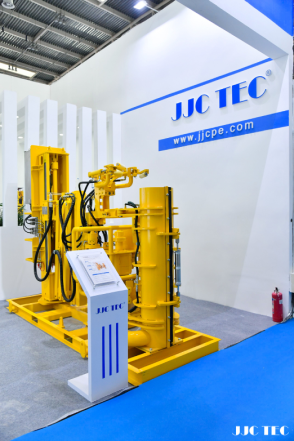

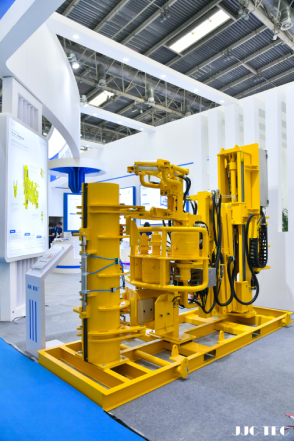

Automated Doper & Mud Bucket

The Automatic Doper & Mud Bucket set blowout preverntion, thread cleaning and thread greasing function in one, is a drilling floor robot configured on the rig for handling drill pipe thread and prevent mud spatter, to completely liberate the drill floor staff, and finally realize the drill floor unmanned. The Automated Doper Kit and the Mud Bucket Kit is interchangeable and suits for pipe sizes from 3-1/2”to 6-5/8”. It can be connected with JJC machine vision module to realize one-button automatic operation.

Product File Download
Highlights

High Efficiency

It centralizes drilling pipes, cleans threads and sprays dope automatically. The “one-button” operation flexibly covers the needs of various scenarios, and promotes the automation of drilling platform. Comprehensively improve drilling efficiency.

Economy

Quantitative doping saving up to 70% dope compared to manual operations with better effects. The mud bucket prevents mud spillage, enables mud effective recovery, and prevents environmental pollution.

Safety

Completely liberate drilling floor staff, realize drilling floor unmanned, avoid equipment and personnel work at the same time, greatly improve the quality of drilling thread connection, to ensure the safety of drilling operations.

Effectiveness

Realize drilling floor unmanned, avoid equipment and personnel work at the same time, avoid mud pollution to the environment, greatly improve the quality of drilling thread connection, to ensure the safety of drilling operations.

Money-Saving

Save thread grease consumption, effectively recover the spatter mud, control the impact of mud splash on the environment, but also improve the mud reuse rate, improve operation efficiency, achieve cost savings.

Labor Saving

To realize the drill floor unmanned, thread cleaning and greasing, mud blowout prevention and centering the thread, automatic one-button operation, to achieve the reduction of personnel and improve the efficiency.

Techincal Specifications
Model
ABM-E1
Hydraulic Requirement
Rated Pressure: 16MPa (2,300psi)
Rated Flow: 60LPM (16GPM)
Pipe Range
3-1/2″ ~ 6-5/8″DP
Joint Height
900mm ~ 1,500mm (35.4″ ~ 59.1″)
Horizontal Travel
1,600mm ~ 3,360mm (63.0″ ~ 132.3″)
Vertical Travel
800mm (31.5″)
Controls
Remote Control and Wireless Control (Standard)

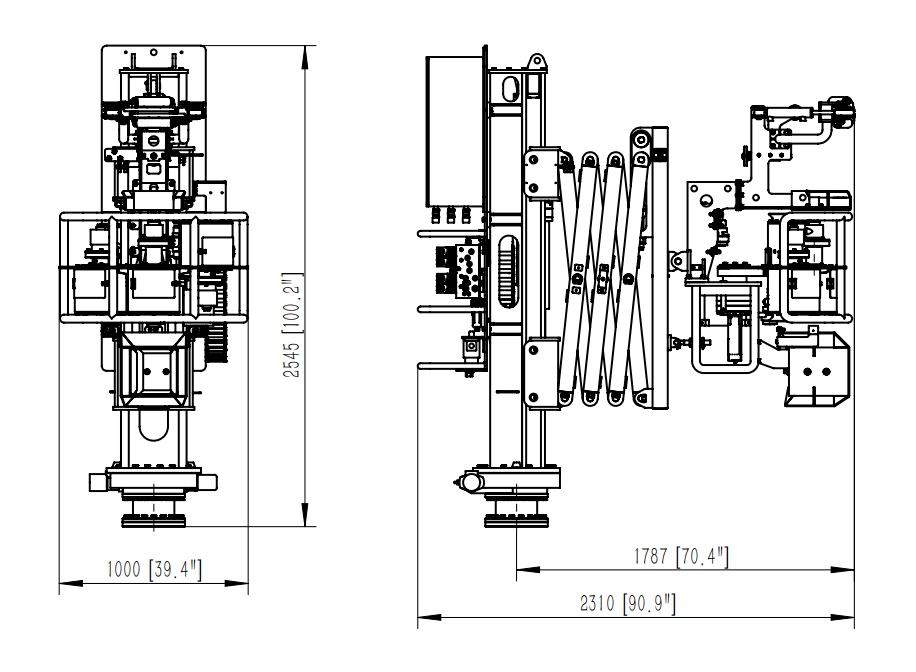

Dimensions
(WxHxL)
1,000mm × 2,545mm × 2310mm
( 39.4″ ×100.2″ ×90.9″ )
Weight
1,800kg (3,968 lbs)
